V2 CCT 576W LED Light Controller Magic Home Led Controller 12v 24v 5 Stars
Product Details:
| Place of Origin: | China |
| Brand Name: | LANPLE |
| Certification: | UL,CE,CUL,ROHS,TUV |
| Model Number: | LL-SC02-CCT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 1PCs |
| Delivery Time: | 15 workday |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100PCs/sky |
|
Detail Information |
|||
| Product Name: | CCT Color Controller | Type: | Dimmer + Remote Controller |
|---|---|---|---|
| Connection Mode: | Radio Frequency | Max. Load Power: | 240W/576W |
| Max Load Current: | 5A*2 CH / 8A*2 CH | Input Voltage(V): | DC0~24V |
| Certificate: | CE.RoHS.FCC | ||
| Highlight: | V2 CCT LED Light Controller,576W LED Light Controller,magic home led controller 12v |
||
Product Description
V2 CCT Led Strip Controller 5 Year Warranty 12v 24v 5-Stars V2 V2-L RF CCT Led Controller
Function:
1.4096 levels 0-100% dimming smoothly without any flash.

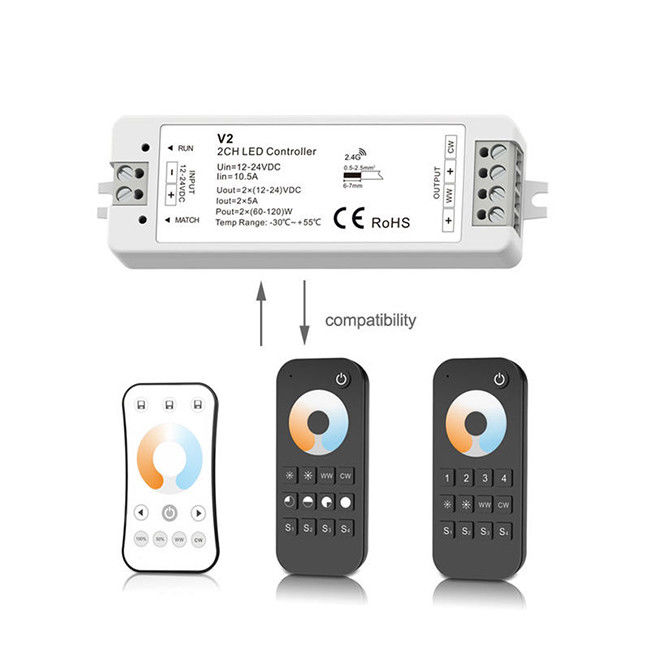

2.Match with RF 2.4G single zone or multiple zone dual color or single color remote control.
3.One RF controller accept up to 10 remote control.
4.Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
5.Synchronize on multiple number of controllers.
6.Fade in and out effect selectable.
7.3 levels color temperature (WW, NW and CW)selectable by continuous power off and on operation.
| Product Parameter | |
| Model No. | V2 |
| Input Voltage | 12-24V DC |
| Output Voltage | 2X(12-24)V DC |
| Output Current | 2CH,5A/CH |
| Output Power | 2X(60-120)W |
| Input Signal | RF 2.4GHz Push Dim |
| PWM Frequency | 2000Hz (default) |
| IP Rating | Ip20 |
| Protection | Reverse polarity / Short circuit |

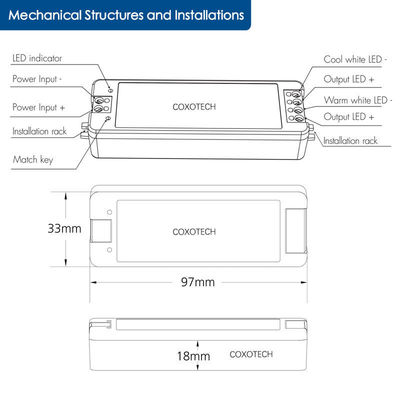

| Size(mm) | 97*33*18 |
LED Controllers:
LED controller is very important and indispensable part of led lighting, it not only can adjust the brightness, but also it can control the colors changing. And for our customers, you can enjoy the warmth of the light, and adjust it according to your feelings.
We have a perfect Radio Frequency system, is a wireless home automation system which enables to control multi zones by one remote with endless receivers in each zone and achieve perfect synchronization, and each receiver can be controlled by 10 remotes.
We offer our customers with different function controllers like dimming Series; Color Temperature Series; RGB/RGBW/
RGB+CCT Kit Series; Triac / Phase Cut Dimmer Series; 0/1-10V System Series; DALI Series and Power Reapter Series.
Passed CE,ROHS,FCC,CETIC,CB,SAA certificates, well-qualified LED controller.
Widely used in various lighting projects such as buildings, hotels, offices, outdoor lighting, etc.
