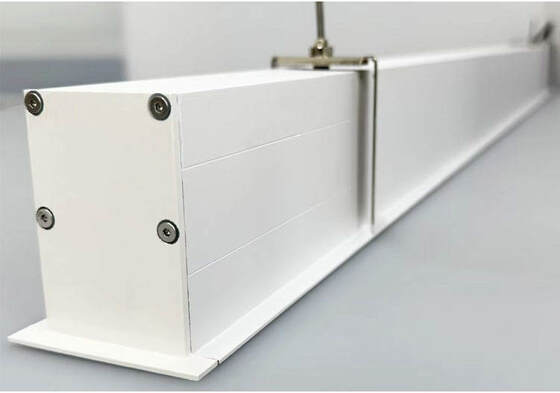

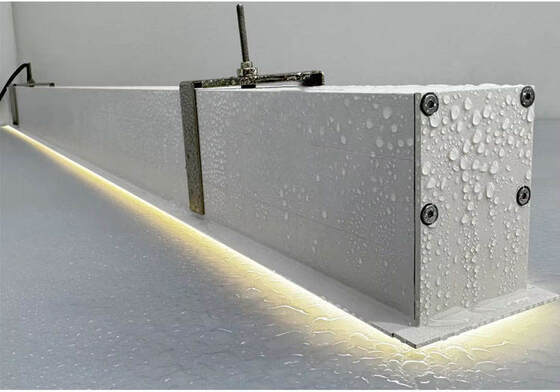

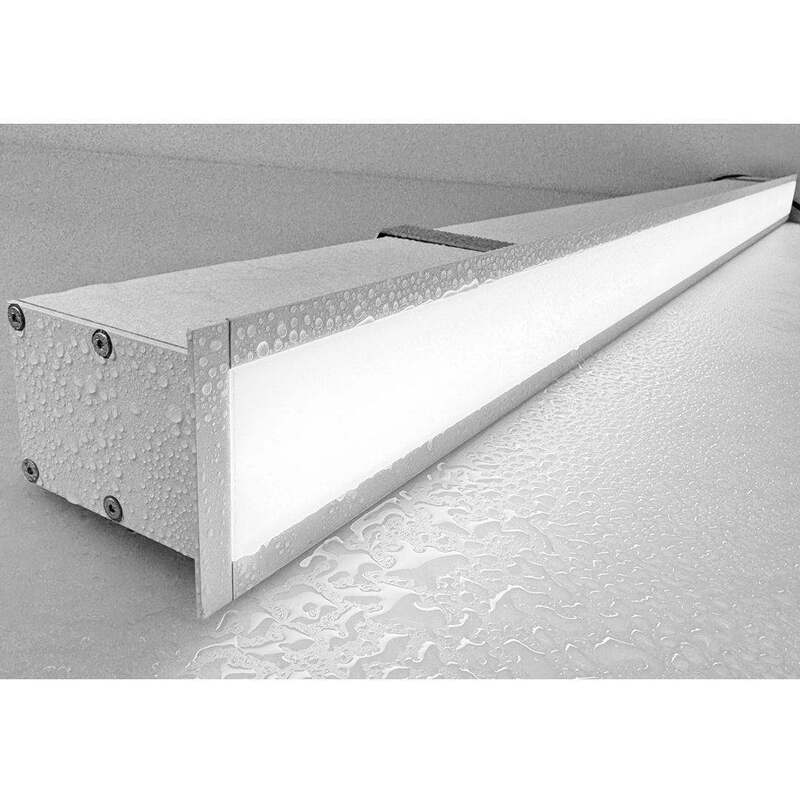

240V Dimmable Recessed LED Linear Light IP65 Waterproof ODM
Place of Origin:Guangdong, China
Brand Name:OEM
Certification:CE,ROHS
Model Number:CR-FS6875-20
Minimum Order Quantity:10 pieces
Price:53usd/piece
Payment Terms:T/T,Western Union
Supply Ability:5000pieces 10-15work days
Tags:
Product Details
Highlight:
240V LED Linear Light
,IP65 Waterproof LED Linear Light
,Dimmable ip65 linear light
Input Voltage:
AC100-240V, 50-60Hz
Color:
3000K/4000K/5000K/6000K
Color Rendering Index(Ra):
>80
Lamp Body Material:
6063 Aluminium Profile + Opal Diffuser
Warranty:
2-Years
IP Rating:
IP65
Function Option:
Non-dimming / 0-10V Dimming / DALI Dimming
Power:
20W/40W/50W/60W/80W
Profile Size:
W68*H75mm
LED Chip:
SMD2835
Product Description
Dimmable Recessed Mount LED Linear Light Waterproof IP65 Gym Pack Lot Office Light
LED Linear Light Technical Parameters:
- Input Voltage: AC100-277V / AC220-240V,50-60HZ
- Material: 6063 Aluminium Profile + Opal Diffuser
- Profile Size: W68*H75mm
- Length Option: 600mm / 1200mm / 1500mm / 1800mm / 2400mm
- LED Chip: SMD2835
- Color Temperature: 3000K / 4000K / 6000K
- Luminous Flux: 100-110Lm/W
- CRI: >80Ra
- PF: >0.90
- Flicker Free: Yes
- Function Option: Non-dimming / 0-10V dimming / DALI dimming
- Finish Color Option: Black / White
- Installation Method: Recessed Mount
- IP Grade: IP65
| Model No. | Watt | Lumens | Size | Input Voltage | CCT |
|---|---|---|---|---|---|
| CR-FS6875-20 | 20W | 2200Lm | L600*W68*H75mm | AC100-277V/AC220-240V | 3000K/4000K/5000K/6000K |
| CR-FS6875-40 | 40W | 4400Lm | L1200*W68*H75mm | AC100-277V/AC220-240V | 3000K/4000K/5000K/6000K |
| CR-FS6875-50 | 50W | 5500Lm | L1500*W68*H75mm | AC100-277V/AC220-240V | 3000K/4000K/5000K/6000K |
| CR-FS6875-60 | 60W | 6600Lm | L1800*W68*H75mm | AC100-277V/AC220-240V | 3000K/4000K/5000K/6000K |
| CR-FS6875-80 | 80W | 8800Lm | L2400*W68*H75mm | AC100-277V/AC220-240V | 3000K/4000K/5000K/6000K |
Installation Guide:
Product Summary
Dimmable Recessed Mount LED Linear Light Waterproof IP65 Gym Pack Lot Office Light LED Linear Light Technical Parameters: Input Voltage: AC100-277V / AC220-240V,50-60HZ Material: 6063 Aluminium Profile + Opal Diffuser Profile Size: W68*H75mm Length Option: 600mm / 1200mm / 1500mm / 1800mm / 2400mm ...
