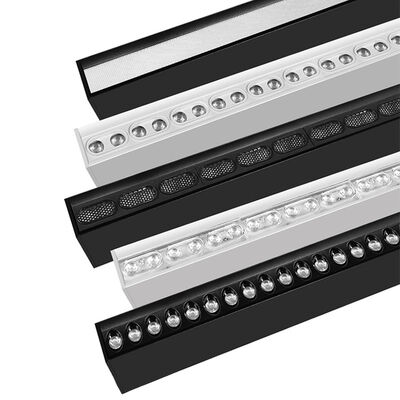

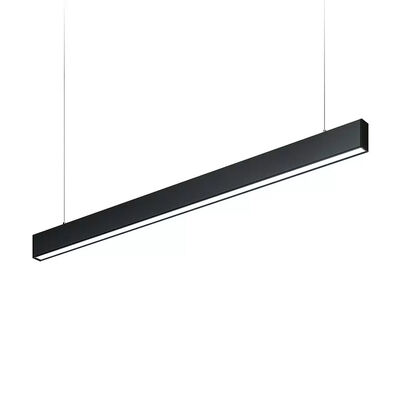

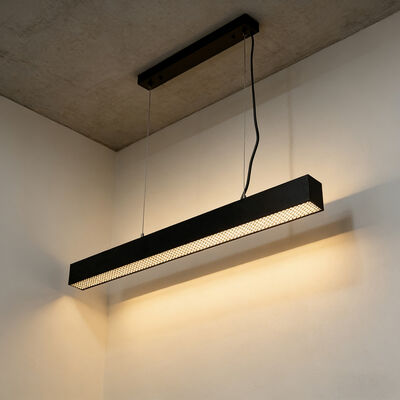

3580 3880 Hanging LED Linear Light Ceiling Aluminum Custom
Place of Origin:Guangdong, China
Brand Name:OEM
Certification:CE,ROHS
Model Number:CR-LLL-3580
Minimum Order Quantity:10 pieces
Price:62usd/piece
Payment Terms:T/T,Western Union
Supply Ability:5000pieces 10-15work days
Tags:
Product Details
Highlight:
3880 LED Linear Light
,Aluminum LED Linear Light
,3580 led linear hanging lights
Input Voltage:
AC100-277V, 50-60Hz
Color:
3000K/4000K/5000K/6000K
Color Rendering Index(Ra):
>80
Lamp Body Material:
Aluminum, PC
Beam Angle:
≥120°
Warranty:
3-Year
IP Rating:
IP20
Dimension:
1200x35x80mm
Product Description
3580 3880 LED Linear Light 3000-6000K LED Ceiling Linear Light Aluminum,PC 3 Years
LED Linear Light Technical Parameters:
| Circle | Ellipse | White Oval | |
|---|---|---|---|
| Dimension | 1200x35x80mm | 1200x35x80mm | 1200x35x80mm |
| Power | 48W | 48W | 48W |
| Input voltage | AC100-277V, 50-60Hz | AC100-277V, 50-60Hz | AC100-277V, 50-60Hz |
| LED Chips brand | Bridgelux | Bridgelux | Bridgelux |
| Lumens | >3600LM | >3600LM | >3600LM |
| 2.4G Full Power | >6000LM(4000K) | >6000LM(4000K) | >6000LM(4000K) |
| CCT | 3000K/4000K/5000K/6000K | ||
| CRI | >80 | >80 | >80 |
| SDCM | <5 | <5 | <5 |
| Efficiency | ≥88% | ≥88% | ≥88% |
| Beam Angle | ≥120° | ≥120° | ≥120° |
| IP grade | IP20 | IP20 | IP20 |
| Lamp thickness | 0.8mm | 0.8mm | 0.8mm |
| Dimmable | 0-10V/2.4G/APP/TRIAC dimming/ Dali | ||
| Standard | ±3% | ±3% | ±3% |
| Warranty | 3 years | 3 years | 3 years |
| UGR | <19 | <16 | <6 |
| Material | Aluminum,PC | Aluminum,PC | Aluminum,PC |
| Installation | Ceiling installation | Ceiling installation | Ceiling installation |
| Grid | Transparent Ellipse | Prismatic Panel | |
|---|---|---|---|
| Dimension | 1200x35x80mm | 1200x35x80mm | 1200x35x80mm |
| Power | 40W | 48W | 40W |
| Input voltage | AC100-277V, 50-60Hz | AC100-277V, 50-60Hz | AC100-277V, 50-60Hz |
| LED Chips brand | Bridgelux | Bridgelux | Bridgelux |
| Lumens | >3000LM | >3600LM | >4800LM |
| 2.4G Full Power | >4500LM(4000K) | >6000LM(4000K) | >3750LM(4000K) |
| CCT | 3000K/4000K/5000K/6000K | ||
| CRI | >80 | >80 | >80 |
| SDCM | <5 | <5 | <5 |
| Efficiency | ≥88% | ≥88% | ≥88% |
| Beam Angle | ≥120° | ≥120° | ≥120° |
| IP grade | IP20 | IP20 | IP20 |
| Lamp thickness | 0.8mm | 0.8mm | 0.8mm |
| Dimmable | 0-10V/2.4G/APP/TRIAC dimming/ Dali | ||
| Standard | ±3% | ±3% | ±3% |
| Warranty | 3 years | 3 years | 3 years |
| UGR | <9 | <11 | <11 |
| Material | Aluminum,PC | Aluminum,PC | Aluminum,PC |
| Installation | Ceiling installation | Ceiling installation | Ceiling installation |
Installation Guide:
